Installing cover for front backrest
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Detach padding from the cover and secure it, see → 741955 REPLACING COVER FOR FRONT BACKREST
- Pull padding with cover over the backrest frame from above.
- Align padding with cover on the backrest frame - A-
.
- Pull the cover and padding back between the seat surface and backrest - B- .
- Plug in electric plug connection for seat heating -1-
(-A-
) until the connector engages securely.
- Tighten fastening screws -3-
for ISOFIX clips -4-
(Tightening torque 7.5 Nm (5.5 ft lb.) +/-0.5 Nm (+/-0.5 ft lb.)
).
- Clip in seat cover at the rear -2- in an upward direction.
- Engage restraining strap -1- at the left and right.
- Fit fixing clips -1-
.

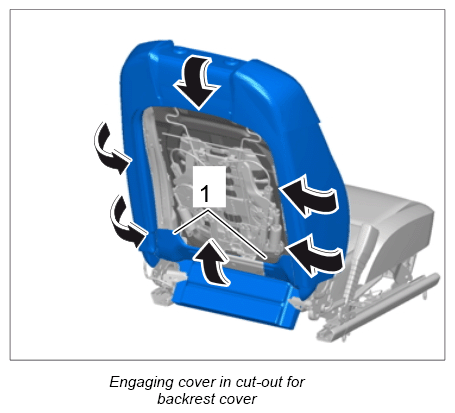

- Engage the cover in the cut-out for the backrest cover all the way around.
