Installing suction fan for backrest surface
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.
- Position suction fan -1-
on the backrest frame and insert it into the rubber flange (air guide) -2-
.
- Secure the suction fan on the backrest frame with two plastic expansion rivets -2-
.

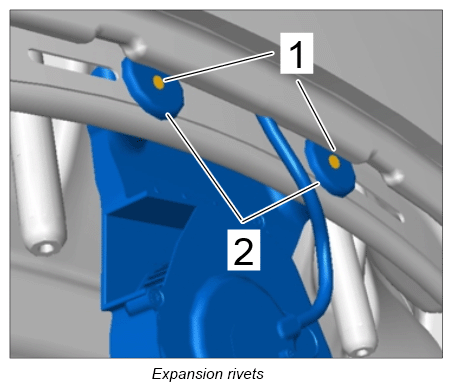

- 2.1. Fit expansion rivets -2- .
- 2.2. Fit plastic pins -1- on the expansion rivets -2- and press them through using a mandrel.
- Plug in electric plug connection for suction fan.
- Attach cover for rear backrest at the top.
