Technical values
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Fastening screw securing side bracket to seat |
Item 5 |
Tightening torque |
7.5 Nm (5.5 ft lb.) |
+/-0.5 Nm (+/-0.5 ft lb.) |
|

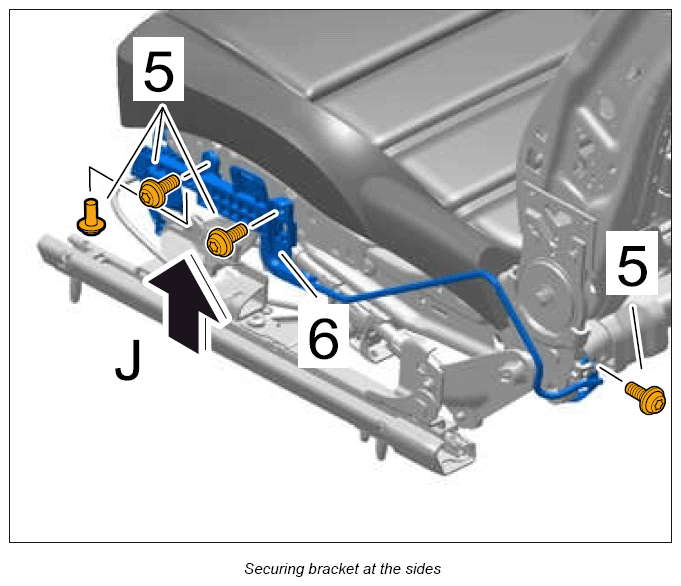

Securing bracket at the sides |
