Removing cover for front seat

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

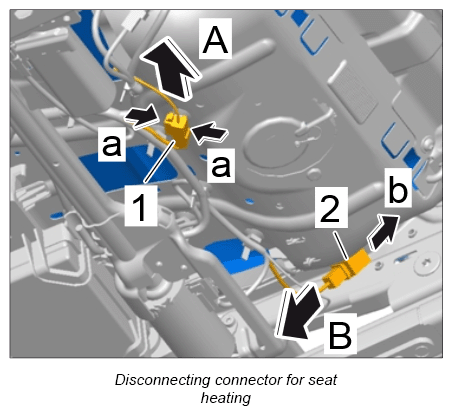

  1. On vehicles with heated seats:  Disconnect connector for seat heating.
    G12836292
    1. 1.1. Release electric plug connection for seat heating -1-  (- a-  ) and disconnect it - A-  .
    2. 1.2. Release electric plug connection for seat heating for seat-surface extension -2-  (- b-  ) and disconnect it - B-  .

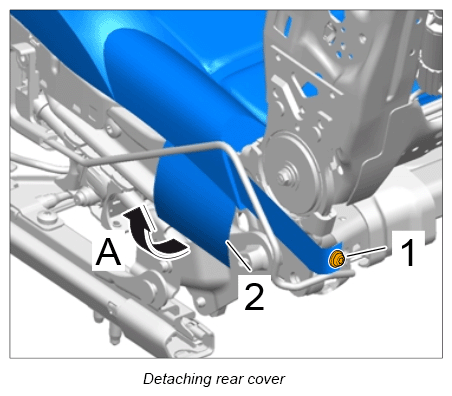

  2. Remove fixing clip -1-  .
    G12836293
  3. Disengage the cover at the sides -2-  (- A-  ).

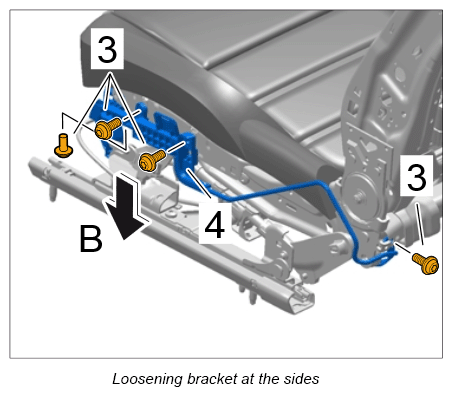

  4. Unscrew fastening screws -3-  and pull the bracket -4-  down out of the catches - B-  .
    G12836294

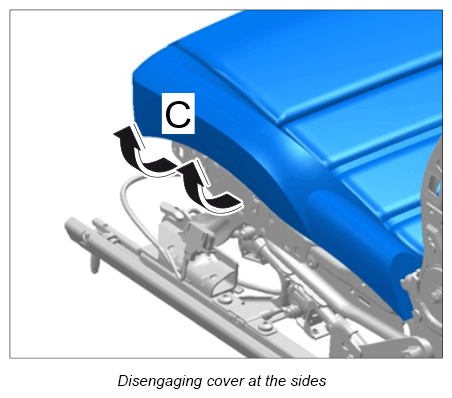

  5. Disengage the cover at the sides - C-  .
    G12836295

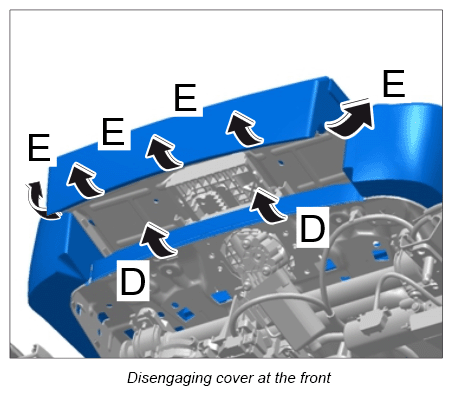

  6. Disengage the cover at the front - D-  .
    G12836296
  7. On vehicles with seat-surface extension:  Disengage the cover on the seat-surface extension - E-  .
  8. Press in expansion rivet pin -5-  and pull out the expansion rivet.
    G12836297

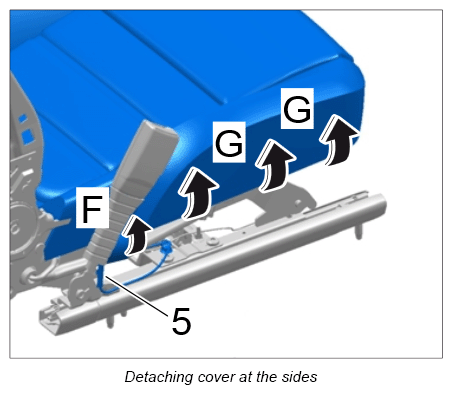

  9. Disengage the cover at the rear - F-  .
  10. Disengage the cover at the sides - G-  .

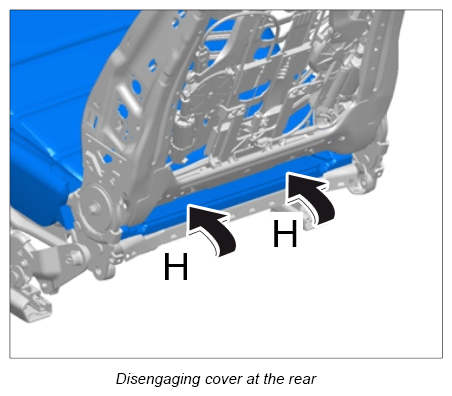

  11. Disengage the cover at the rear - H-  .
    G12836298

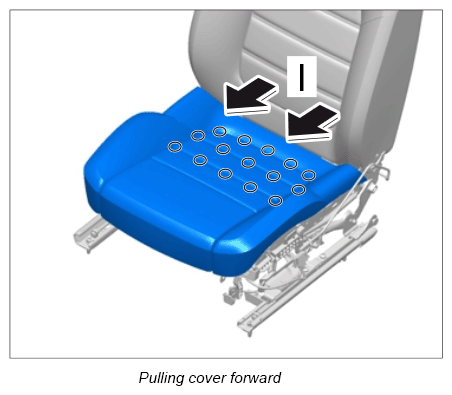

  12. Pull the cover forward between the padding for the seat and backrest - I-  .
    G12836299

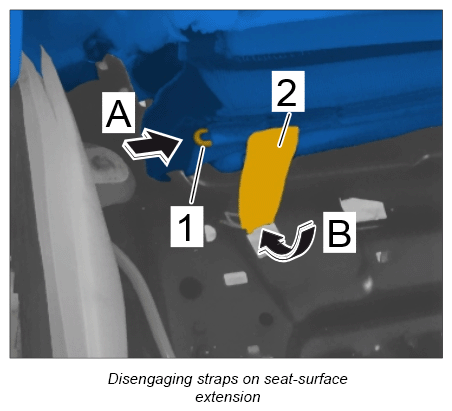

  13. On vehicles with seat-surface extension:  Disengage seat extension straps at both sides.
    G12836300
    1. 13.1. Lift up padding for rear seat.
    2. 13.2. Push back the bar -1-  on the cover - A-  .
    3. 13.3. Disengage strap for seat-surface extension -2-  and guide it through in a downward direction - B-  .
  14. Remove seat cover together with the padding from the seat frame.
