Installing cover for front seat

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Fit seat cover with padding on the seat frame.

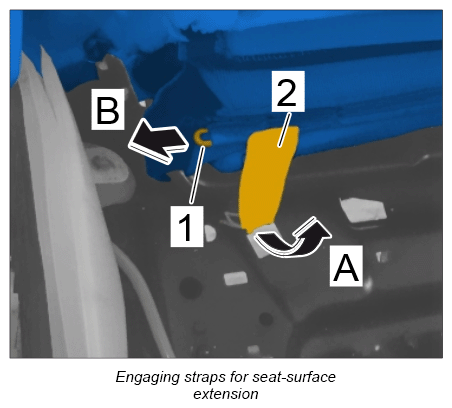

On vehicles with seat-surface extension: Engage seat extension straps at both sides.
1. 2.1. Lift up padding for rear seat.
2. 2.2. Guide seat-surface extension strap -2- through from top to bottom - A- and slide it onto the bar - B- .
3. 2.3. Slide the bar -1- through the seat-surface extension strap -2- and the tab on the cover -3- .

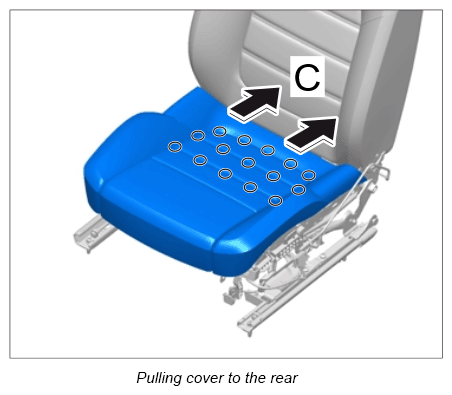

Pull the cover back between the padding for the seat and backrest - C- .

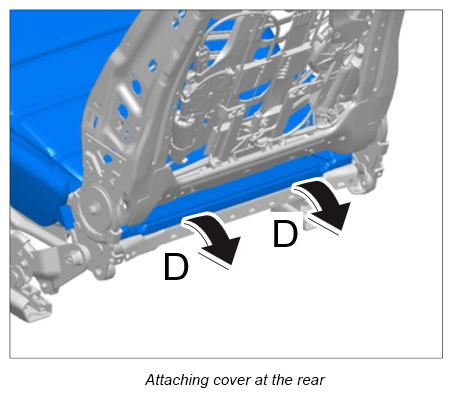

Attach the cover at the rear - D- .

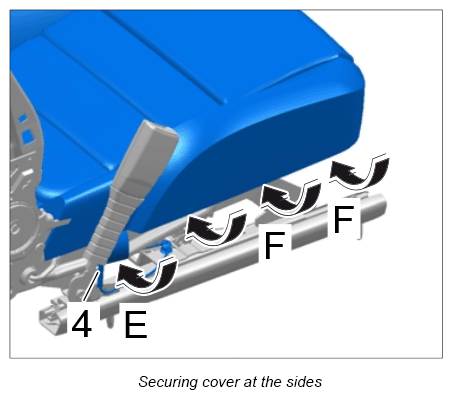

Attach the cover at the rear - E- .
Attach the cover at the sides - F- .
Fit expansion rivet -4- .
Information

Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.

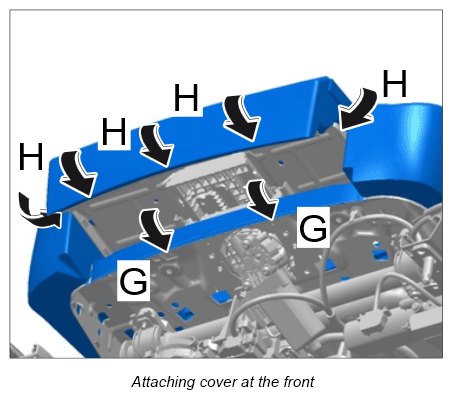

Attach the cover at the front - G- .
On vehicles with seat-surface extension: Attach the cover on the seat-surface extension - H- .

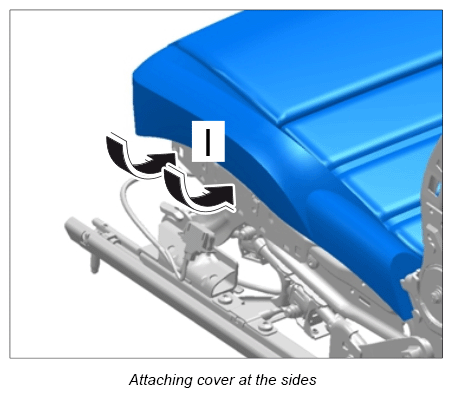

Attach the cover at the sides - I- .

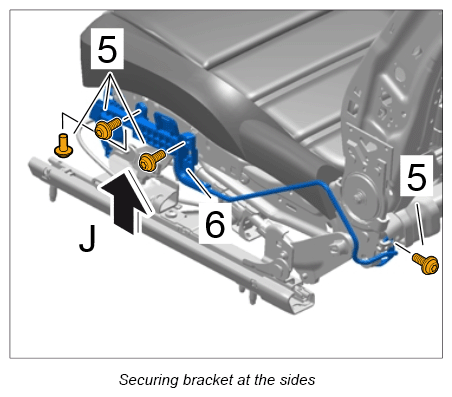

Engage the bracket -6- from below - J- .
Tighten fastening screws -5- (Tightening torque 7.5 Nm (5.5 ft lb.) +/-0.5 Nm (+/-0.5 ft lb.) ).
Fit fixing clip -7- .
Information

Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.

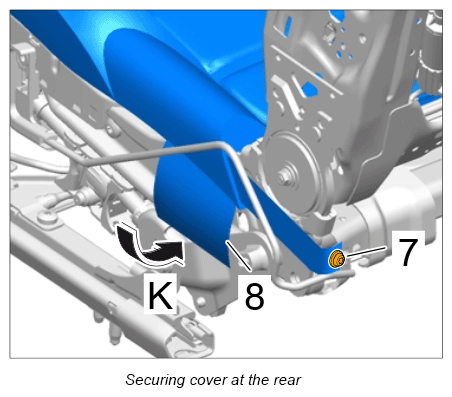

Attach cover at the rear -8- (- K- ).

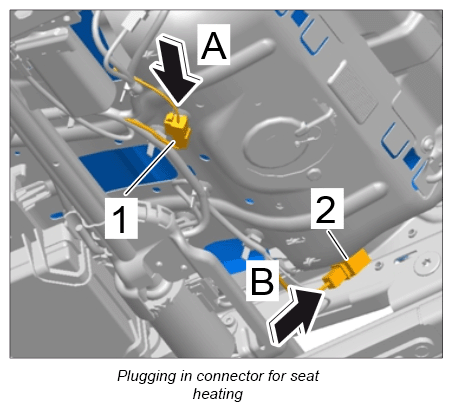

On vehicles with heated seats: Plug in connector for seat heating.

15.1. Plug in electric plug connection for seat heating -1- (- A- ) until the connector engages securely.
15.2. Plug in electric plug connection for seat heating for seat-surface extension -2- (- B- ) until the connector engages securely.
