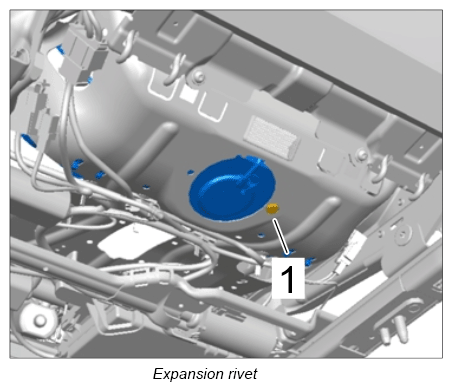

Remove expansion rivet -1-
.

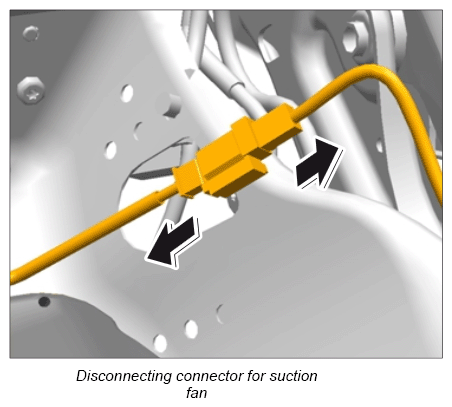

Disconnect electric plug connection for suction fan.

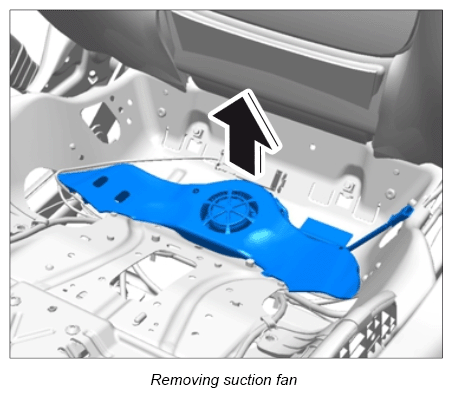

Unclip the suction fan together with the bracket and remove it by pulling it upwards.
