Installing suction fan for seat surface

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.

  1. Position suction fan together with the bracket on the seat surface.

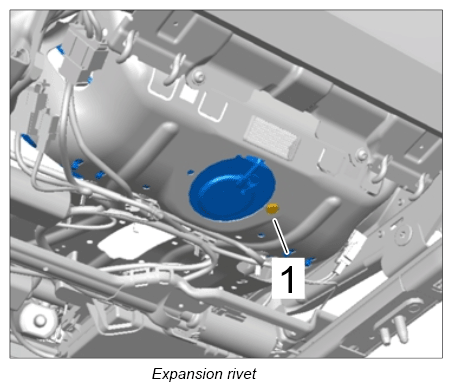

  2. Clip in the bracket and secure the suction fan on the seat surface with an expansion rivet -1-  .
    G12836260

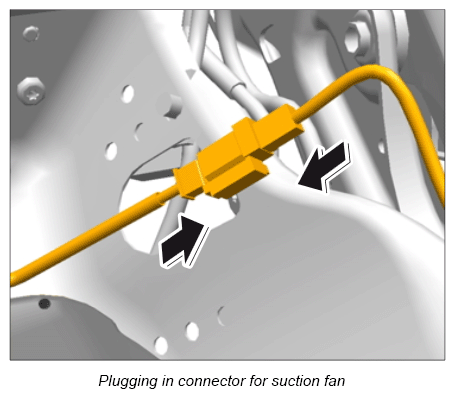

  3. Plug in electric plug connection for suction fan.
G12836261
