Removing front seat-surface extension

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electric plug connection -1-  on the motor - A-  .

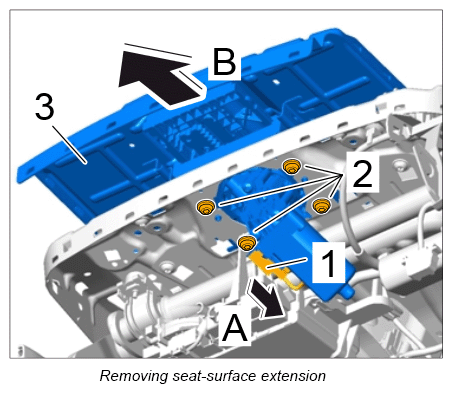

    G12836253
  2. Unscrew four fastening screws -2-  on the seat-surface extension.
  3. Remove seat-surface extension -3-  and motor in an upward direction - B-  .
