Removing sun blind on door window
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

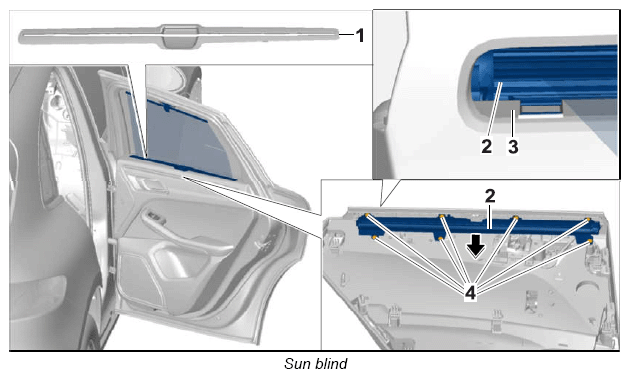

- Roll the sun blind -2- in fully.
- Unclip trim -1- and remove it.
- Unscrew fastening screws -4- .
- Press sun blind -2- out of the guiding groove -3- on the door panel in direction of arrow.
- Remove sun blind -2- from the door panel.
