Installing cover for oddments tray
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

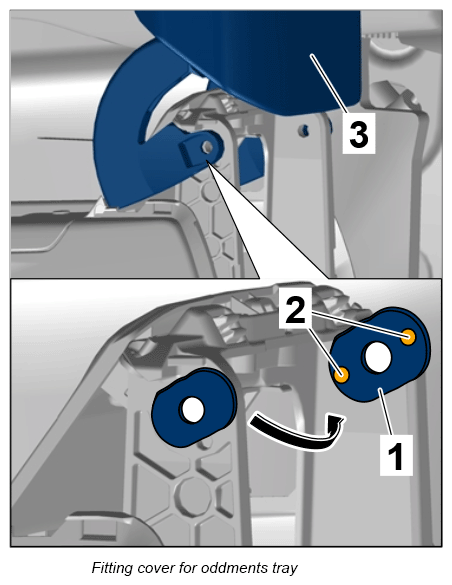

- Position and secure plastic guide pads -1- with centering devices -2- on the center console.
- Guide cover -3-
onto center console.
Further installation is performed in reverse order. Pay particular attention to the following:
- Counter at the screw and tighten nut to the specified torque. Tightening torque 4 Nm (3 ft lb.)
