Removing rear inner door sill trim

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

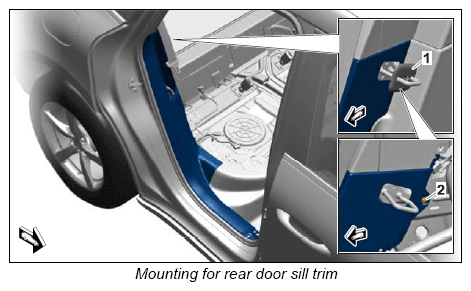

  1. Unclip cover -1-  and remove it.
  2. Unscrew fastening screw -2-  .
    G12836020

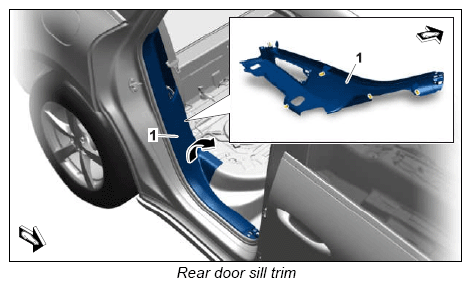

  3. Unclip door sill trim -1-  at all fastening points and remove it.
G12836021
