Removing front inner door sill trim
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .

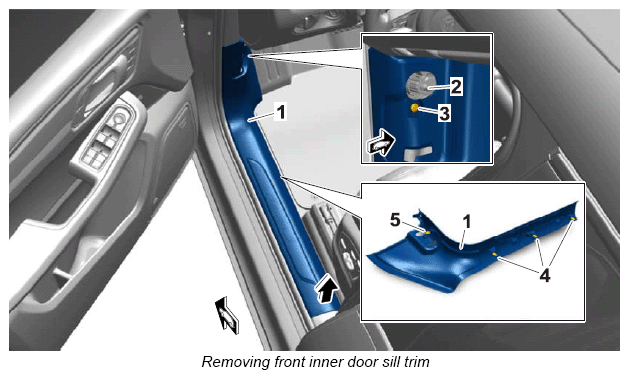

- Unscrew fastening screw -3- .
- Lift up door sill trim -1- in the rear area and unclip it.
- Unclip fixing clips -4- on the side member and lift door sill trim -1- up slightly.
- Unclip fixing clips -5- on the body.
- Guide out door sill trim -1- at the release mechanism -2- and footrest and remove it.
