Removing rear skirt: Notes

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

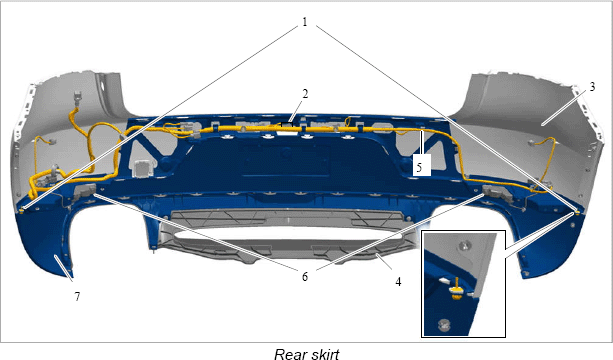

  1. Remove rear panel -4-  . → 635619 REMOVING AND INSTALLING REAR PANEL
  2. Remove reversing lights -6-  . → 947419 REMOVING AND INSTALLING REVERSING LIGHT
  3. Remove wire harness for ParkAssist -5-  at the rear skirt -7-  . → 975919 REMOVING AND INSTALLING WIRE HARNESS FOR PARKASSIST
  4. Remove reversing camera -2-  . → 914319 REMOVING AND INSTALLING REVERSING CAMERA
  5. Remove number plate lights. → 942919 REMOVING AND INSTALLING NUMBER PLATE LIGHT
  6. Release expansion rivets -1-  and remove them.
  7. Unclip rear skirt -7-  at the rear apron -3-  and remove it.
G12835476Courtesy of PORSCHE CARS NORTH AMERICA, INC.
