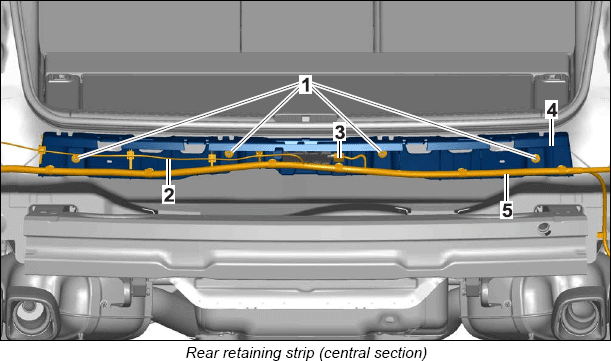

Removing rear retaining strip (central section)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Unclip electric wire harness -1, 2-
on retaining strip (central section) -4-
.
- Release and disconnect electric plug connection -3-
.
- Unscrew fastening nuts -1-
and remove rear retaining strip (central section) -4-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
