Disassembling and assembling rear apron
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle .
- Remove wire harness for ParkAssist. → 975919 REMOVING AND INSTALLING WIRE HARNESS FOR PARKASSIST

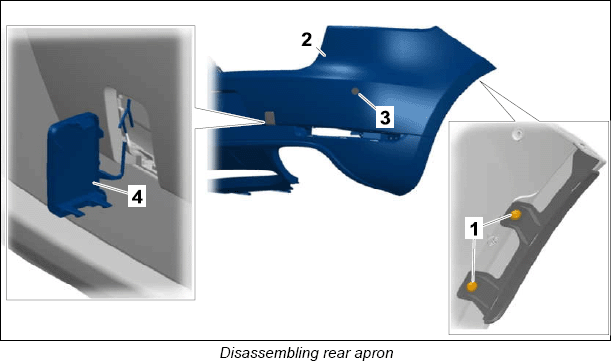

- Remove ParkAssist sensors -3- . → 917519 REMOVING AND INSTALLING PARKASSIST SENSOR
- Unclip cover for towing lug -4- and guide out bracket.
- Unscrew fastening screws -1- for wheel covers.
- Remove wheel covers.
Assemble in reverse order. Pay particular attention to the following:
- Tighten fastening screws for wheel covers to the specified tightening torque. Tightening torque 2 Nm (1.5 ft lb.)
