Removing rear bumper

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

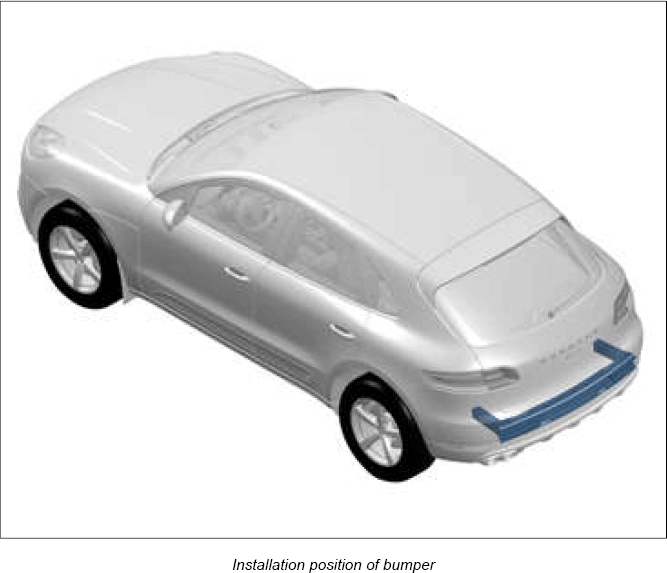

G12835461Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew and remove fastening screws -1-  at the left and right of the bumper.

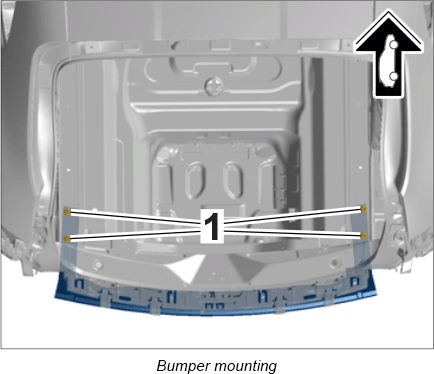

    G12835462Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the bumper out to the rear.
