Removing skid plate

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fastening clamps.
  2. Unclip skid plate -2-  on the front apron -3-  .
  3. Guide out tabs -1-  on the front apron -3-  and remove skid plate -2-  .

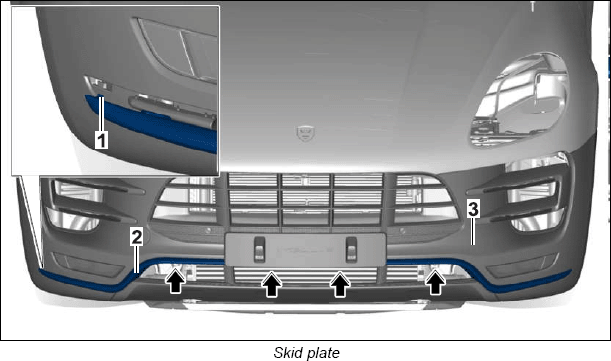

G12835457Courtesy of PORSCHE CARS NORTH AMERICA, INC.
