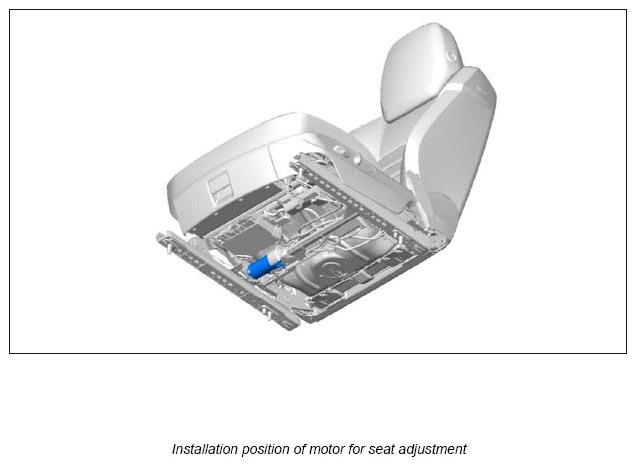

Removing motor for seat adjustment
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

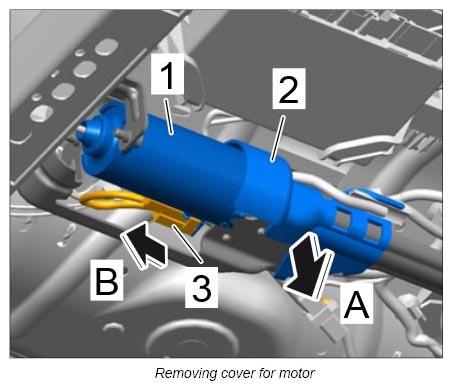

- Push out locking mechanism for cover for motor -2-
from the rear and unclip cover for motor -1-
(-A-
).
- Disconnect electric plug connection -3- at the motor -B- .

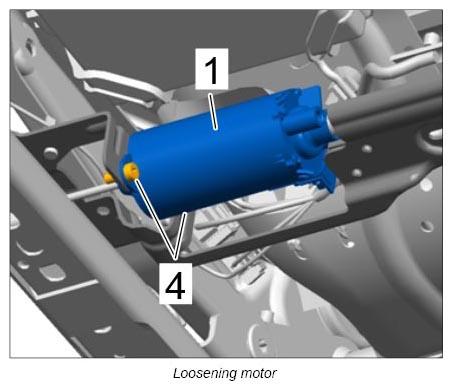

- Unscrew two fastening screws -4-
.

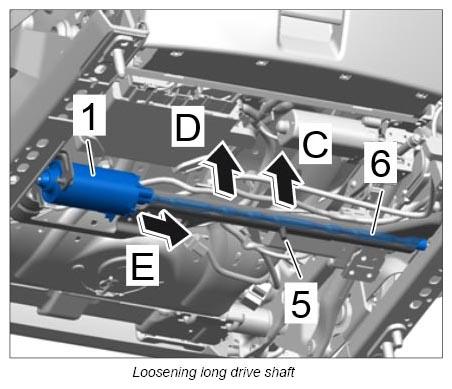

- Unclip fixing clip -5-
for the long drive shaft -6-
(-C-
).
- Carefully bend the long drive shaft -6- (-D- ) and pull it off the motor -1- (-E- ).

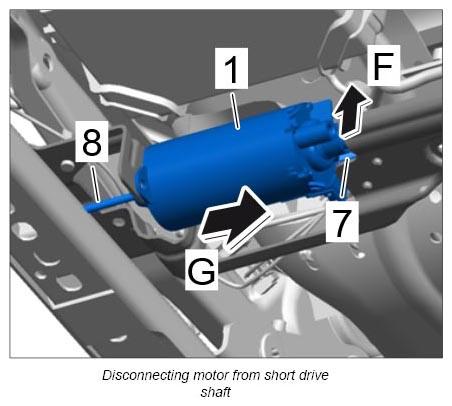

- Unclip the motor -1-
from the seat frame -7-
(-F-
) and pull it off the short drive shaft -8-
(-G-
).
