Installing motor for seat adjustment
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

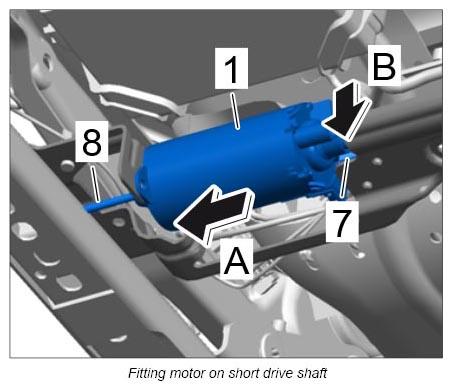

- Fit the motor -1-
on the short drive shaft -8-
(-A-
) and engage it in the seat frame -7-
(-B-
).

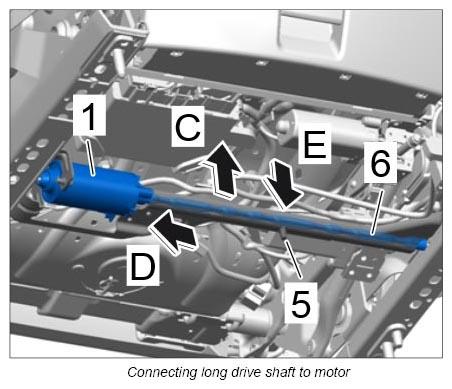

- Carefully bend the long drive shaft -6-
(-C-
) and connect it to the motor -1-
(-D-
).
- Clip in fixing clip -5- for the long drive shaft -6- (-E- ).

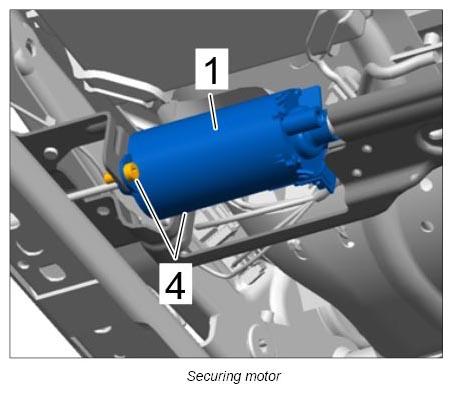

- Screw in two fastening screws -4-
.

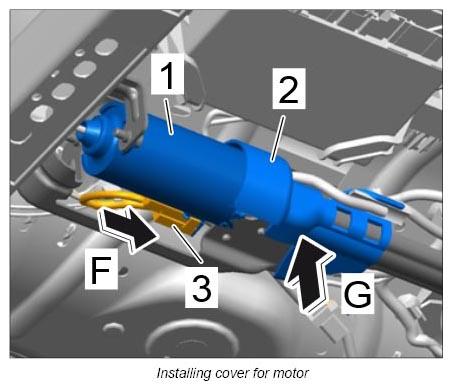

- Plug in electric plug connection -3-
on the motor -F-
.
- Clip in cover -2- for motor -1- (-G- ) and lock it.
