Removing lock for rear backrest at the left and right

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear backrest. → 724719 REMOVING AND INSTALLING REAR BACKREST - "REMOVING"

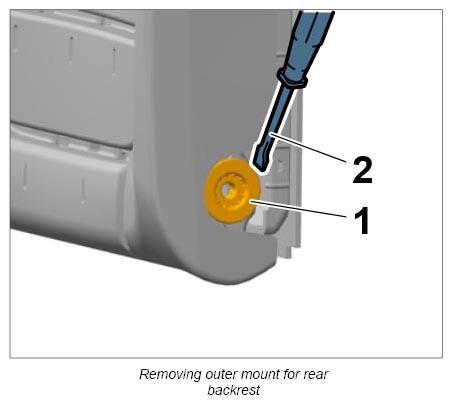

  2. Unclip the outer mount for the rear backrest on the backrest side -1-  using a plastic wedge -2-  .
    G12890617

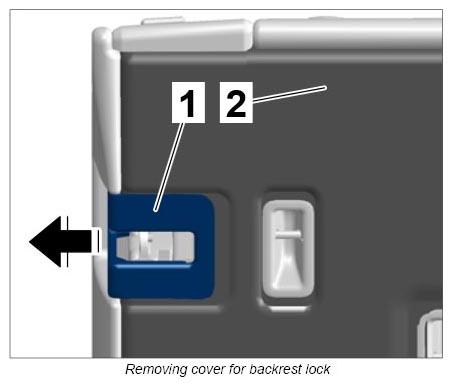

  3. Pull cover for backrest lock -1-  off the backrest -2-   .
    G12890618

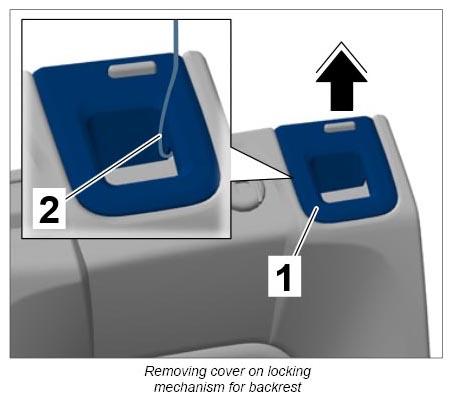

  4. Pull off cover for backrest locking mechanism -1-  in an upward direction using a suitable tool (e.g. a hook) -2-   .
    G12890619
  5. Loosen cover close to the backrest lock and close to the cover for the locking mechanism.

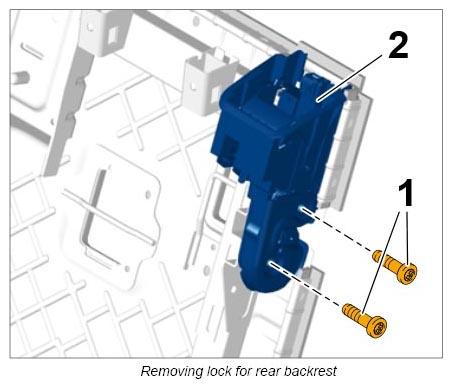

  6. Loosen fastening screws -1-  and remove lock for rear backrest -2-  .
    G12890620
