Installing lock for rear backrest at the left and right

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

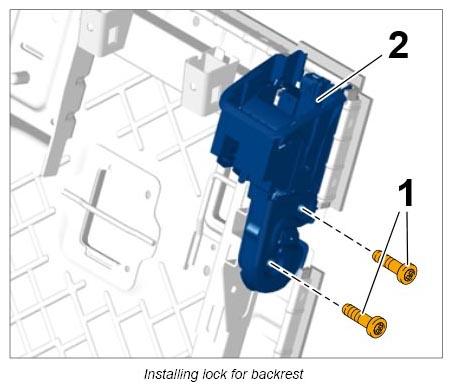

  1. Position lock for rear backrest -2-  and secure it. Tightening torque 26 Nm (19 ft lb.)
    G12890627

    Information

    • Replace fastening screws with new fastening screws before installation.
    • Self-locking nuts and screws must always be replaced before installation.
  2. Secure cover close to the backrest lock and close to the cover for the locking mechanism.

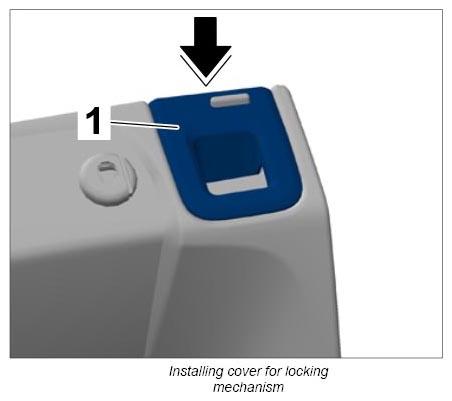

  3. Fit cover on locking mechanism for backrest -1-  from above and clip it in.
    G12890628

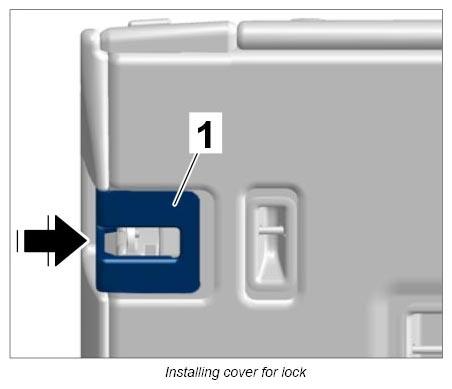

  4. Fit cover on lock for backrest -1-  at the sides and press it on securely .
    G12890629

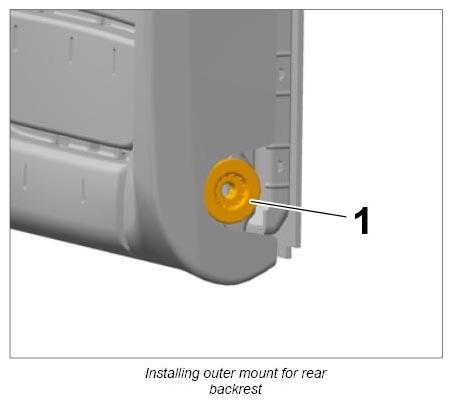

  5. Clip in the outer mount for the rear backrest on the backrest side -1-  and press firmly.
    G12890630
  6. Install rear backrest. → 724719 REMOVING AND INSTALLING REAR BACKREST - "INSTALLING"
