Installing lock for rear backrest at the center

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

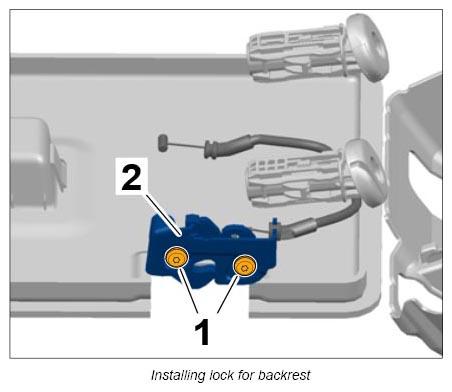

  1. Tighten fastening screws -1-  for backrest lock -2-  (Tightening torque 26 Nm (19 ft lb.)  ).
    G12890631

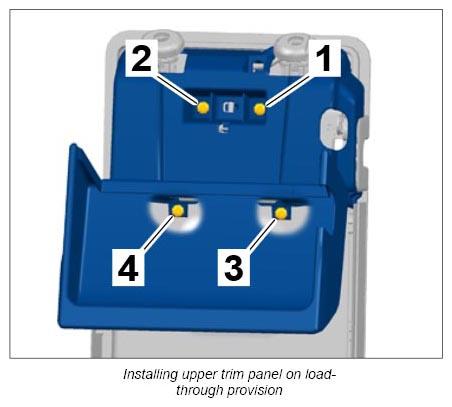

  2. Install upper trim panel on load-through provision.
    1. 2.1. Engage operating cable for lock for rear backrest at the center.

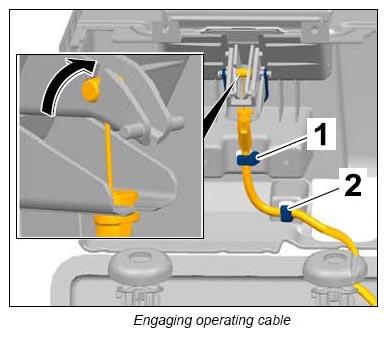

      1. 2.1.1. Engage operating cable at the seat belt mount.
        G12890632
      2. 2.1.2. Engage operating cable at the fixing clips -1 and 2-  .
    2. 2.2. Tighten fastening screws -1, 2, 3, 4-  (Tightening torque 3.5 Nm (2.5 ft lb.)  ).
      G12890633
    3. 2.3. Press cover piping into the retaining strips all the way around.

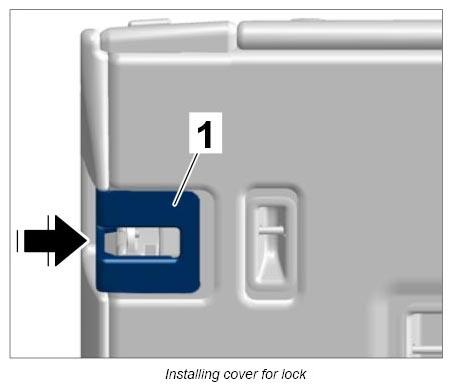

  3. Fit cover on lock for backrest -1-  at the sides and press it on securely.
    G12890634

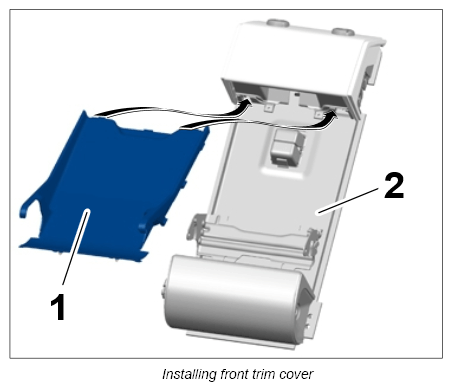

  4. Install front trim cover -1-  on the load-through provision -2-  in such a way that the clip fastenings lock with an audible click in the lower area.
    G12890635
