Technical values
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

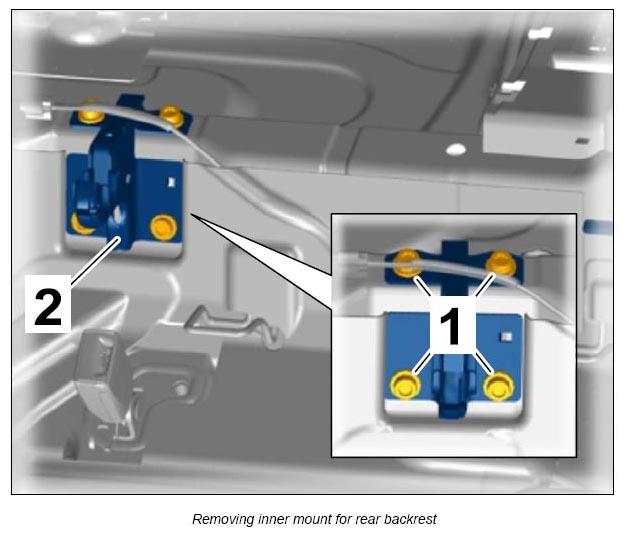

| Fastening screw for inner backrest mount (on body side) |
|
Tightening torque |
20 Nm (15 ft lb.) |
|
|
|
|

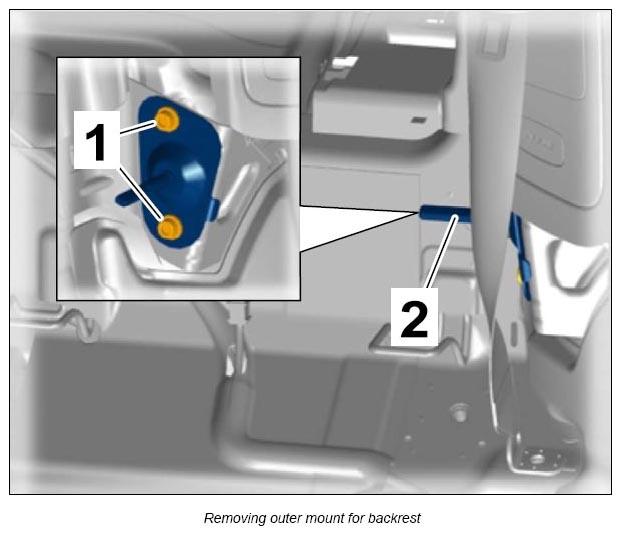

| Fastening screw for outer backrest mount (on body side) |
|
Tightening torque |
20 Nm (15 ft lb.) |
|
|
|
|
