Installing outer mount for rear backrest (on body side)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

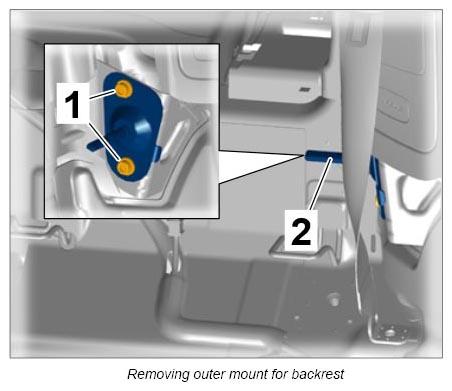

  1. Fit and tighten fastening screws -1-  for outer mount for rear backrest at the body -2-  . Tightening torque 20 Nm (15 ft lb.)
    G12890612
