Removing inner mount for rear backrest (on backrest side)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the adhesive pad -1-  from the inner mount -2-  .

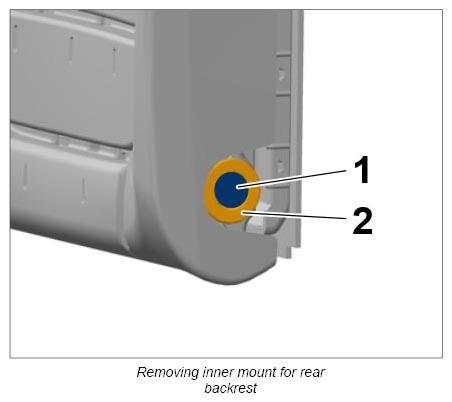

    G12890600
  2. Unscrew the inner mount for the rear backrest (on the backrest side) -2-  .
