Installing inner mount for rear backrest (on backrest side)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the fastening screw for the inner mount on the backrest side. Tightening torque 39 Nm (29 ft lb.)

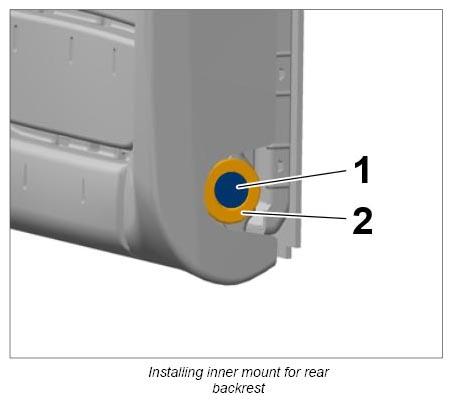

    G12890605
  2. Affix the adhesive pad in the center of the fastening screw.
