Removing rear seat

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

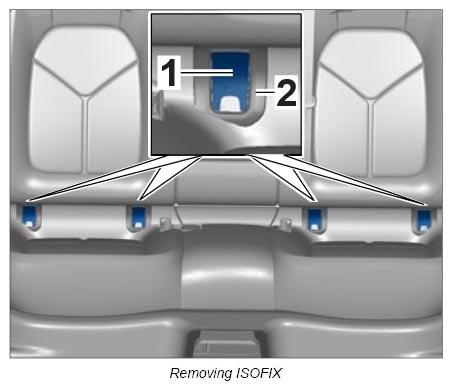

  1. Remove ISOFIX cover.
    1. 1.1. Pull ISOFIX trims -1-  up and remove them.
      G12890591
    2. 1.2. Press ISOFIX cover -2-  down and pull it forward out of the ISOFIX clip.

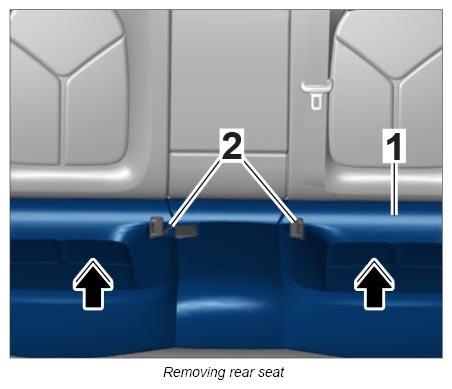

  2. Pull up entire surface of rear seat -1-  at the front.
    G12890592
  3. Guide seat-belt buckles -2-  out towards the holes in the rear seat and adjust rear seat to upright position.

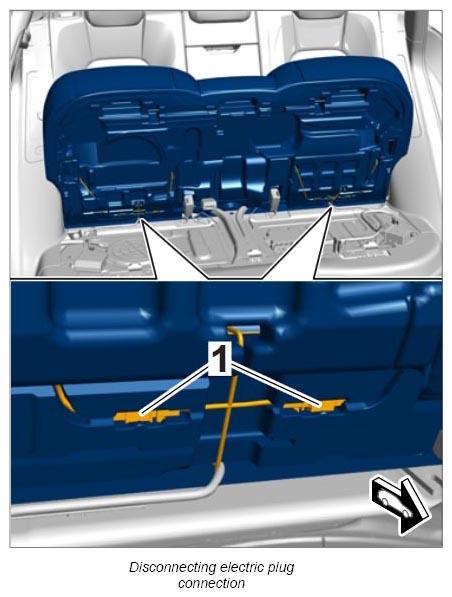

  4. Disconnect electric plug connections -1-  for heating elements.

    Information

    The number of electric plug connections can vary, depending on vehicle equipment.

    G12890593
  5. Remove rear seat.
