Removing rear left backrest

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

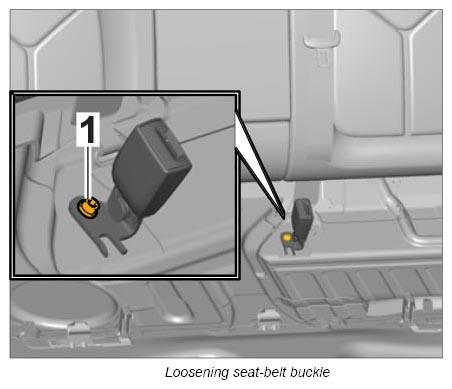

  1. Loosen seat-belt buckle for middle seat from the body.
    G12890577
  2. Fold load-through provision forward.
  3. Unscrew and remove fastening screw -1-  for left supporting bow -2-  .

    Remove supporting bow by moving it upwards - A-  and unhooking it and pulling it forward out of the cross bolt - B-  .

    G12890578
  4. Lift rear left backrest -1-  out of the center mount -2-  and remove it - A-  .
    G12890579
  5. Pull rear left backrest -1-  towards the center of the vehicle and remove it from the mount on the body -3- (- B-)  .
  6. Only for vehicles with heated seats:  Disconnect electric plug connection between the rear seat and backrest.
