Removing side cover for backrest

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move front seat to the rearmost and highest position.
  2. Press in expansion rivet pins -1-  and pull out expansion rivets.

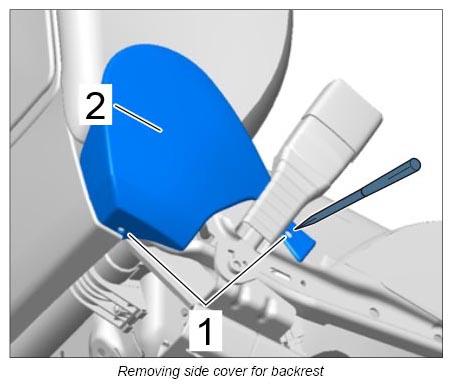

    G12890525
  3. Disengage side cover for backrest -2-  by pulling it to the rear and remove it at the front by pulling it upwards.
