Installing air cushion for seat

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

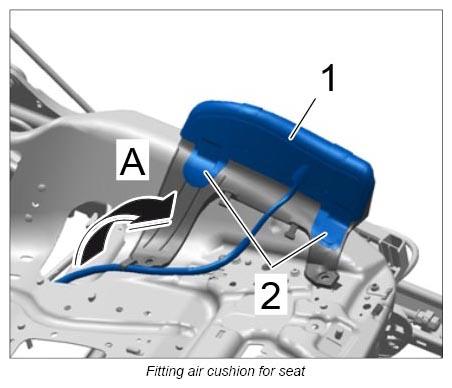

  1. Pull both air cushions -1-  up through the cut-outs in the seat frame from below -A-  .
    G12890489
  2. Clip fixing clips -2-  for both air cushions -1-  into the brackets.

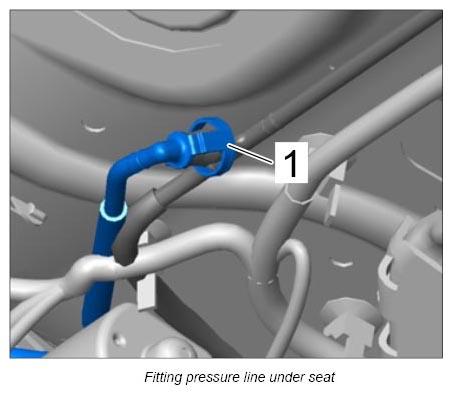

  3. Fit the pressure line (red) -1-  under the seat.
    G12890490
