Removing rear door panel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclip cover -1- on door opener using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove fastening screws -1- on door panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip door light or reflector -1- using a suitable tool and disconnect plug connection.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

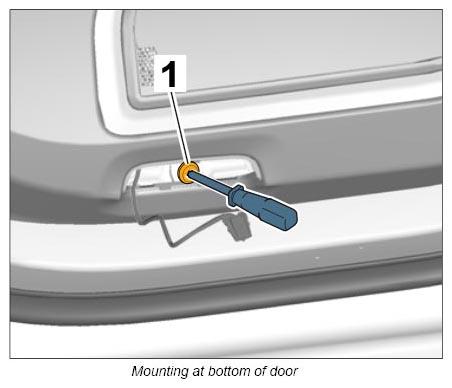

Unscrew and remove fastening screw -1 - at the bottom of the trim panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide door panel up out of the bracket and swivel it forward.
Disengage cable for door opener.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 6.1. Spread locking lugs outwards -A- .
2. 6.2. Remove cable by pulling it to the rear out of the guide -2- (-B- ).
3. 6.3. Swivel cable in direction of arrow until the driver at the front is free -C- .
4. 6.4. Remove driver from the door opener -D- .
Release and disconnect plug connection for wire harness at the door control unit.
