Removing trim for rear door panel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

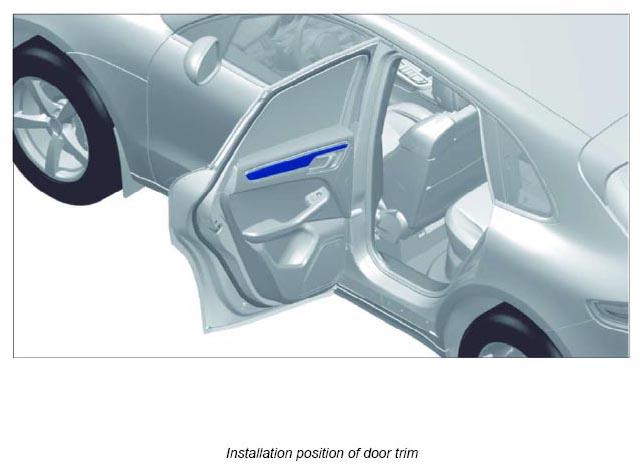

G12890401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

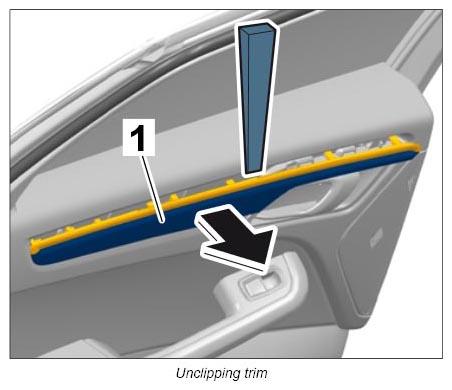

  1. Unclip trim -1-  for door panel from front to rear using a suitable tool.
    G12890402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

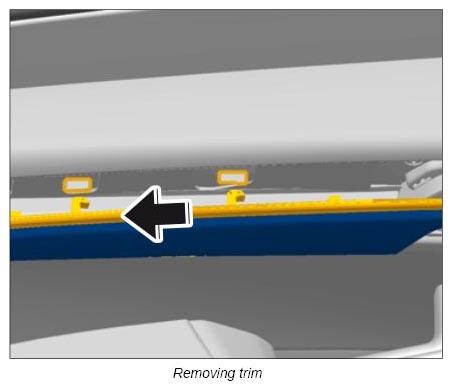

  2. Push trim back until the hooks are released, then remove trim.
    G12890403Courtesy of PORSCHE CARS NORTH AMERICA, INC.
