Removing trim for front door panel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

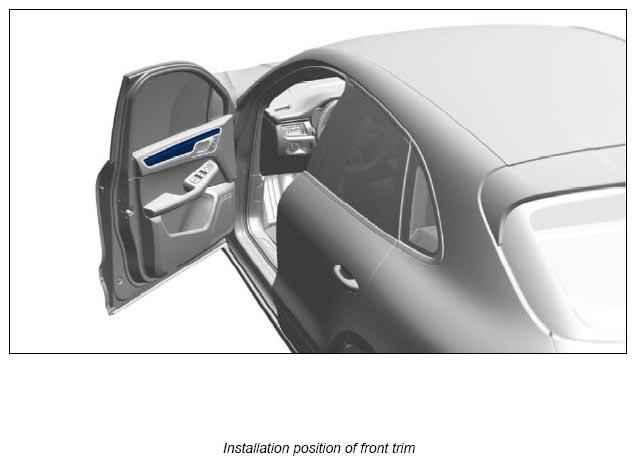

G12890398Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip trim for door panel to the rear using a suitable tool.
    G12890399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push trim back until the hooks are released, then remove trim.

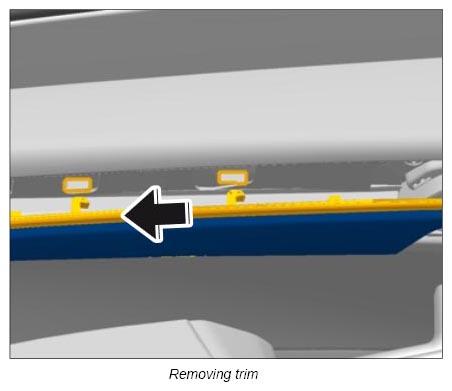

    G12890400Courtesy of PORSCHE CARS NORTH AMERICA, INC.
