Removing dashboard moulding on passenger's side

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

1. Open cover flap on navigation system.

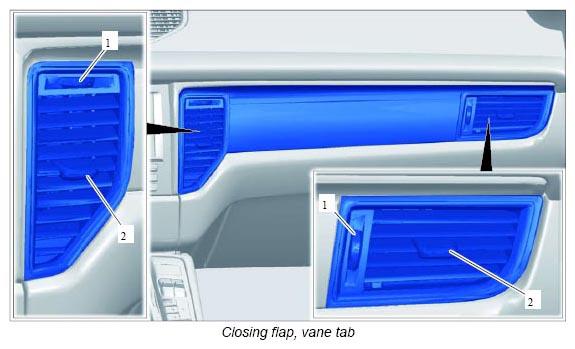

2. Open closing flaps on the air vents using adjusting wheels -1-  .
3. Move both vane tabs -2-  to centre position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

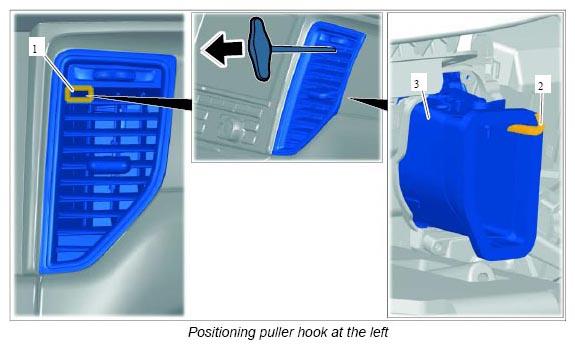

4. Guide puller hook in the upper area -1-  into the left air vent and make sure that the hook -2-  engages securely in the housing -3-  . Suitable tool: Hook 3438
5. Hold puller hook tightly and release the left locking lug.
   1. 5.1. Open the glove compartment.

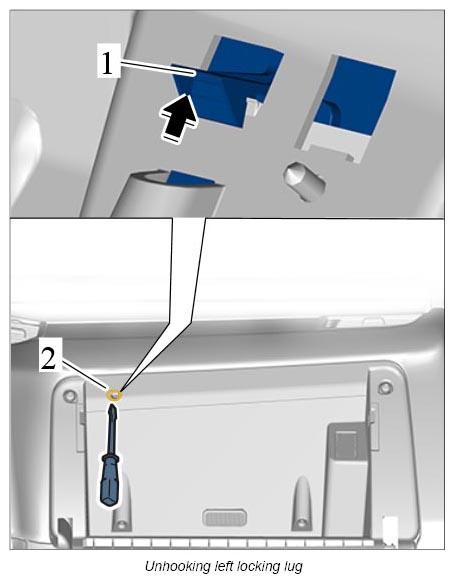

   2. 5.2. Unhook locking lug -1-  through the opening -2-  using a screwdriver.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

6. Pull on the puller hook until the air vent with moulding disengages from the dashboard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

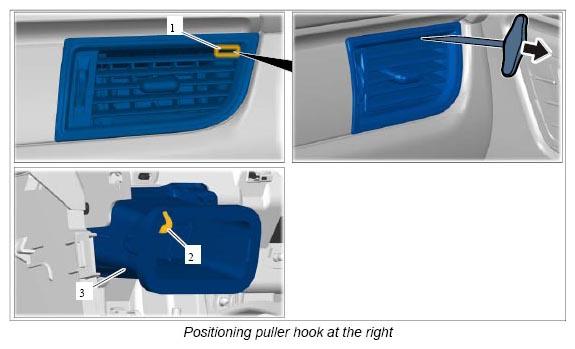

7. Guide puller hook in the upper area -1-  into the right air vent and make sure that the hook -2-  engages securely in the housing -3-  .
8. Hold puller hook tightly and release the right locking lug.

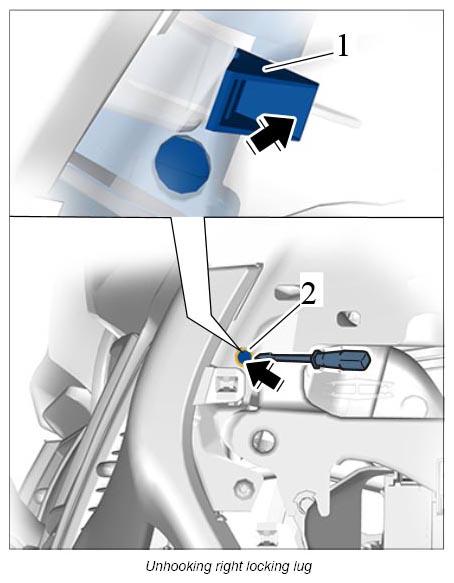

   1. 8.1. Unhook locking lug -1-  through the opening -2-  using a screwdriver.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

9. Pull on the puller hook until the air vent with moulding disengages from the dashboard.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

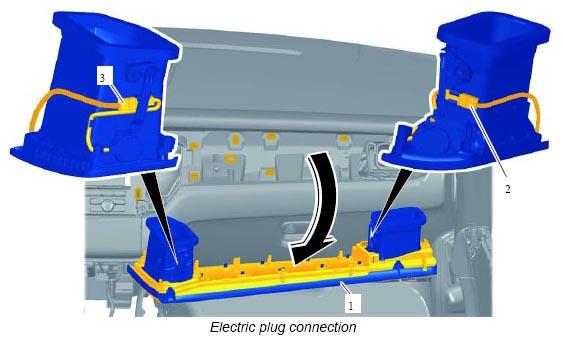

10. Pull air vent with moulding -1-  out of the dashboard. On vehicles with illuminated air vents, disconnect electric plug connections -2, 3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

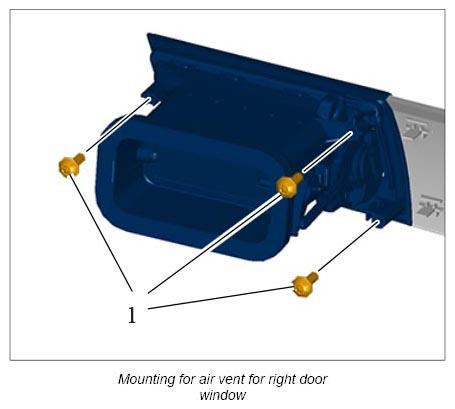

11. Unscrew fastening screws -1-  on the left air vent and disconnect air vent from the moulding.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

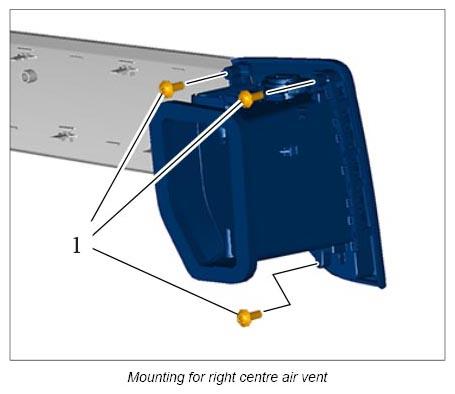

12. Unscrew fastening screws -1-  on the right air vent and disconnect air vent from the moulding.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
