Removing A-pillar trim panel

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
Some steps must be carried out automatically.
Some of the repair illustrations show only one side of the vehicle.

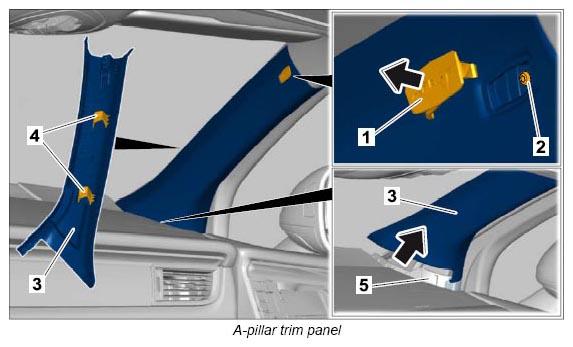

Unclip cover -1- .
Unscrew fastening screw -2- .
Unclip A-pillar trim panel -3- . Make sure that the fixing clips -4- are loosened completely from the A-pillar.
Guide trim panel -3- out of the dashboard mounting -5- in direction of arrow.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
