Removing cover for dashboard (defroster trim)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip cover -1-  from dashboard and lift it up slightly.
  2. Disconnect electric plug connection -2-  .
  3. Remove cover -1-  .

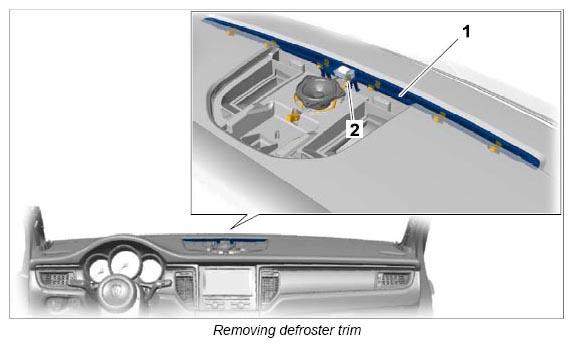

    G12890363Courtesy of PORSCHE CARS NORTH AMERICA, INC.
