Removing insulation for front lid
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Open the engine compartment lid.

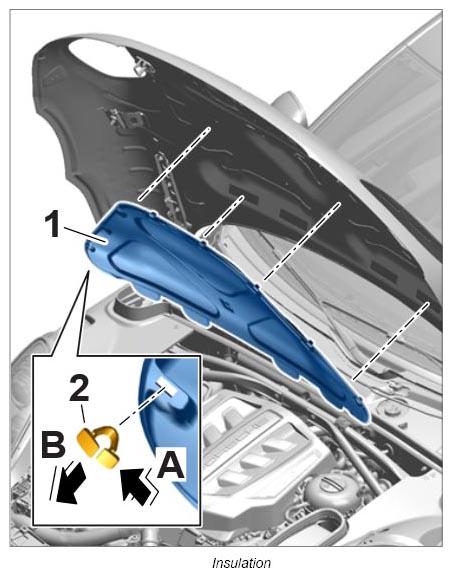

- Carefully insert a suitable tool between the insulation -1-
and retaining clips.
- 2.1. Push locking lug of retaining clip towards -A-
.
- 2.2. Disengage and remove retaining clips. -B-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove the insulation by pulling it forward.
