Removing upper part of side trim panel for luggage compartment

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

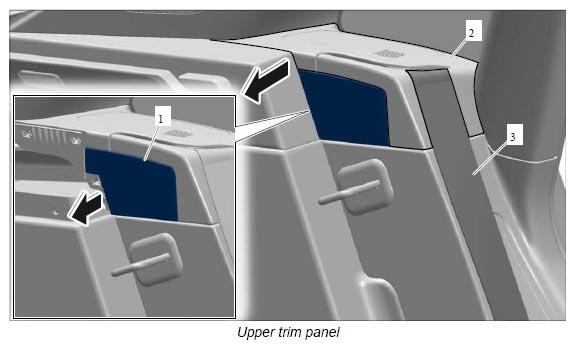

  1. Unclip cover -1-  .
  2. Unclip upper trim panel -2-  .
  3. Guide the seat belt -3-  out and remove upper trim panel -2-  .
    G12890345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
