Removing side trim panel for rear luggage compartment: Notes
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
- Some steps must be carried out automatically.
- Some of the repair illustrations show only one side of the vehicle.

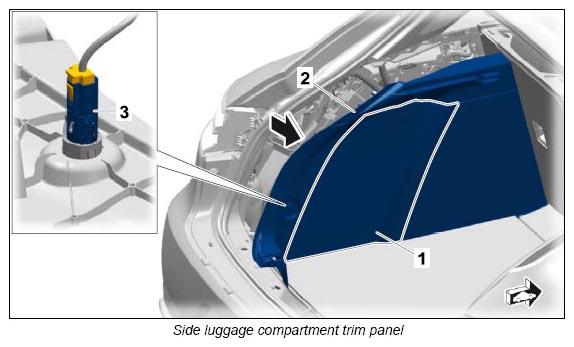

- Fold out inner part -1 -
of side trim panel -2-
.
Only carry out Step 2 when removing the right side trim panel and on vehicles with a trailer hitch:
- Release electric plug connection at the trailer hitch switch and disconnect it. → 666219 REMOVING AND INSTALLING SWITCH FOR TRAILER HITCH
- Guide out inner part -1- at the side trim panel -2- and remove it.
- Fold the relevant rear seat forward.
- Unclip side trim panel -2- at the body and fold it aside.
- Release and disconnect electric plug connection at the luggage compartment lamp.
→ 964019 REMOVING AND INSTALLING LUGGAGE COMPARTMENT LAMP
Only carry out Step 7 when removing the left side trim panel .
- Release and disconnect electric plug connection at the 12 V plug socket -3- .
- Guide side trim panel -2-
up and remove it.
