Removing control unit for auxiliary alarm system
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

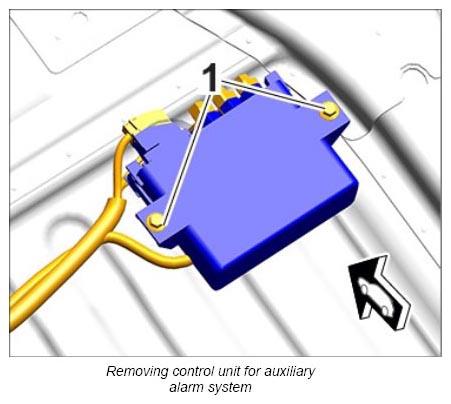

- Loosen shear-off nuts -1-
using socket-wrench insert 9259
and remove holder for control unit for auxiliary alarm system.
- Remove control unit for auxiliary alarm system from its holder.

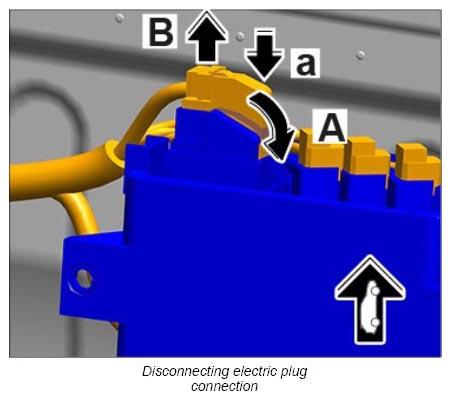

- Release electric plug connection -a-
, fold the securing clip over -A-
and disconnect plug connection -B-
.

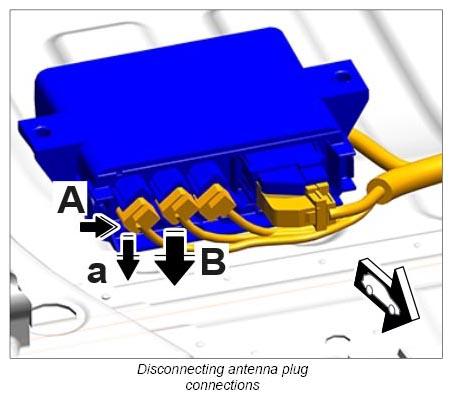

- Release antenna plug connections -a, A-
and disconnect them -B-
.
- Remove control unit for auxiliary alarm system from the vehicle.
