Installing control unit for auxiliary alarm system
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

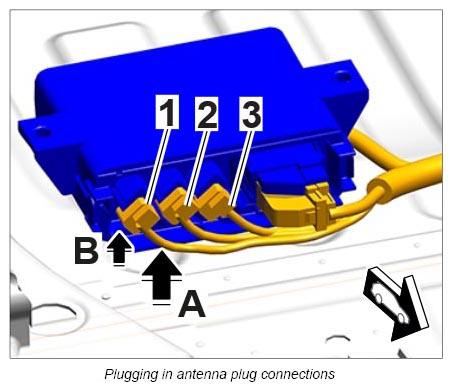

- Plug in antenna plug connections for GSM -1-
, GPS -2-
and driver card -3-
(-A-
) and lock securely -B-
.

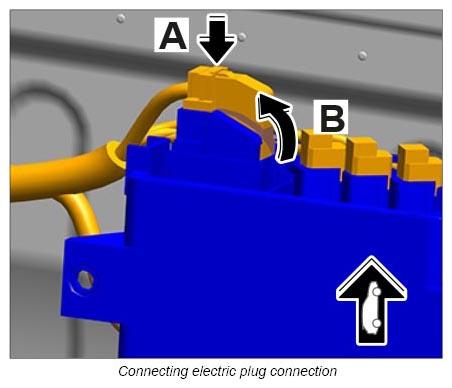

- Plug in electric plug connection -A-
and fold locking clip over -B-
.

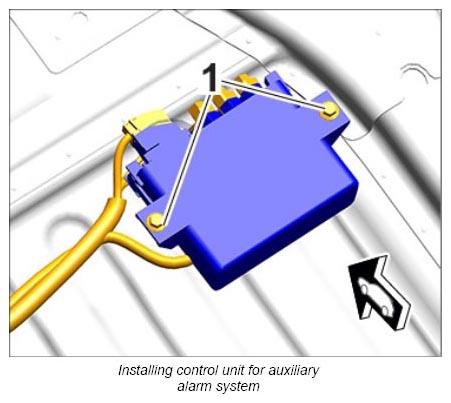

- Push control unit for auxiliary alarm system into holder and position it on the screw bolts.
- Tighten shear-off nuts -1- until they break off.
