Removing plug socket in rear center console

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

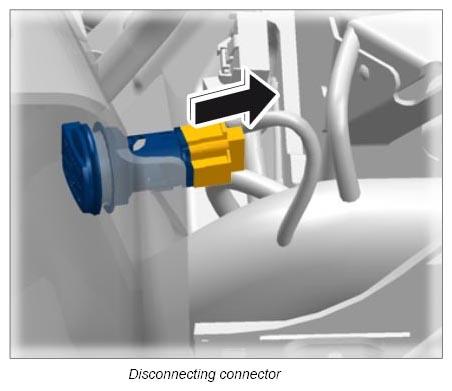

  1. Release connector on plug socket and disconnect it.
    G12837083

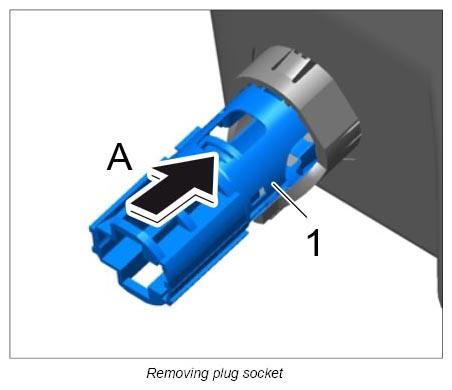

  2. Open the cover of the plug socket and press out the plug socket -1-  using a screwdriver -A-  .
G12837084

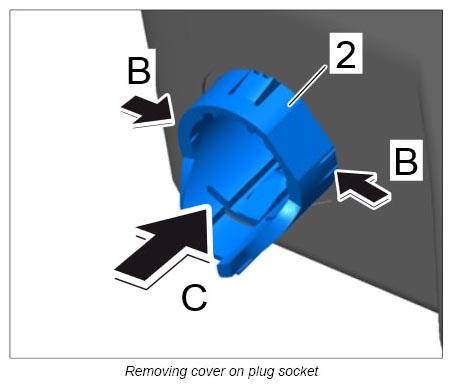

Release the cover -2-  (-B-  ) and press it outwards -c-

G12837085
