Removing plug socket in luggage compartment side panel at the left

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

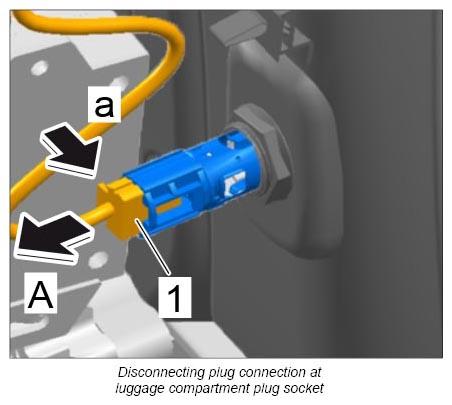

  1. Release connector -1-  and (-a-  ) and disconnect it -A-  .
    G12837086

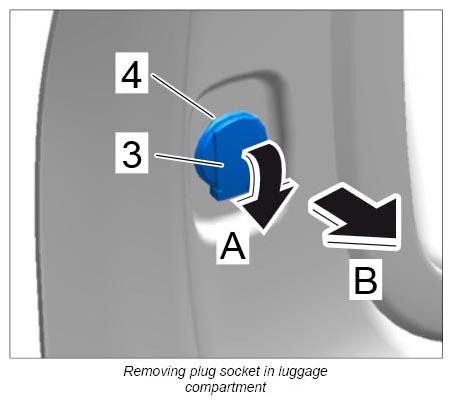

  2. Open the cover of the plug socket -3-  (-A-  ) and press out plug socket -4-  by pushing it forward -B-  .
G12837087
