Removing plug socket in front center console

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

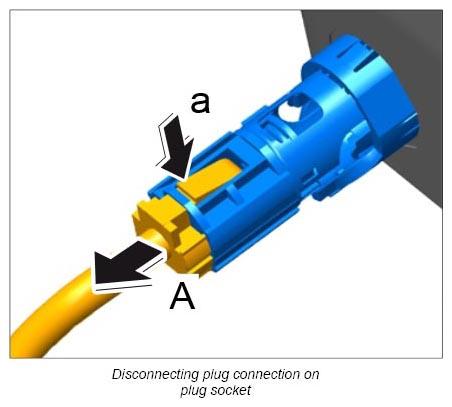

  1. Release plug connection on the plug socket -a-  and disconnect it -A-
    G12837077

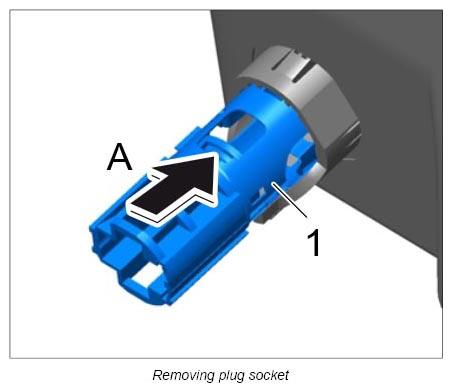

  2. Open the cover of the plug socket and press plug socket -1-  on the underside outwards using a screwdriver -A-
    G12837078

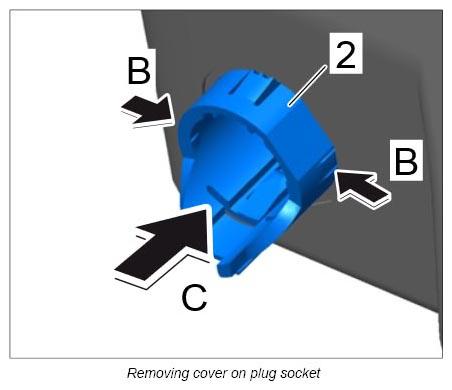

  3. Release the cover -2-  (-B-  ) and press it outwards -c-
G12837079
