Removing gateway control unit

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work .
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation .
Do not touch electric pins and plug contacts .

Switch off ignition and pull remote control out of ignition lock.

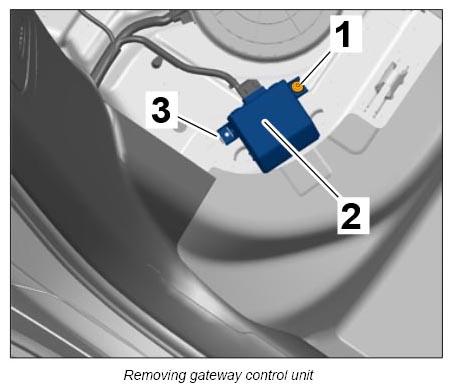

Unscrew fastening screw -1- .
Pull gateway control unit -2- out of the clip -3- .

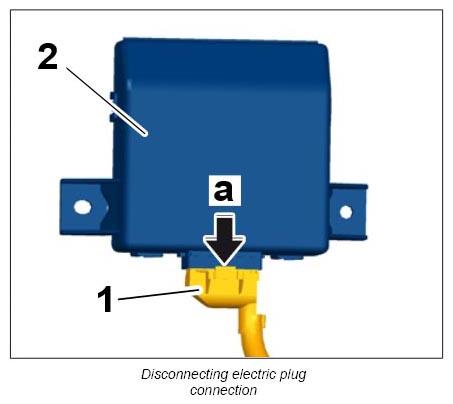

Release electric plug connection -1- (-a- ) and pull it off the gateway control unit -2- .
