Removing dashboard inset

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move steering column to its lowest, rearmost position.

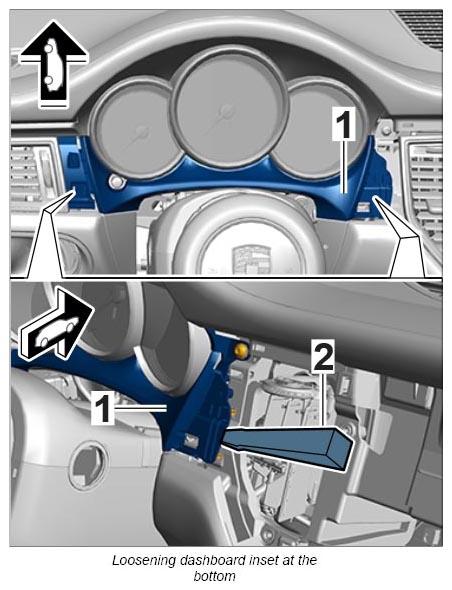

  2. Unclip bottom of dashboard inset -1-  at the left, right and in the middle from the dashboard using a plastic wedge -2-  .
    G12837049

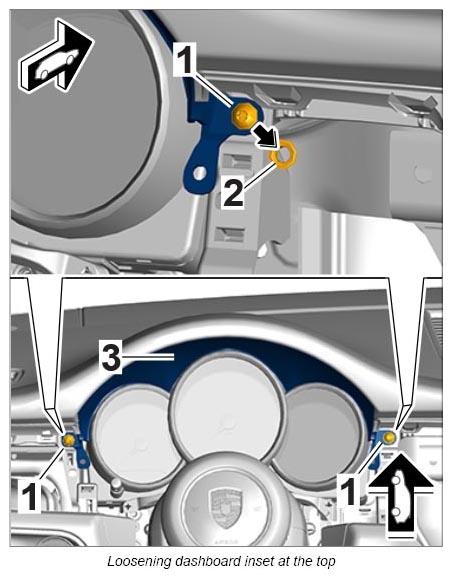

  3. Unscrew fastening screws -1-  and remove plastic insulating plates -2-  between dashboard inset -3-  and dashboard.
    G12837050
  4. Loosen dashboard inset at top and detach it from the dashboard.

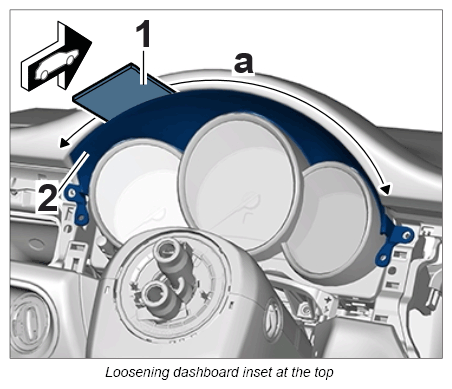

    1. 4.1. Carefully push a plastic squeegee -1-  in between the top of the dashboard inset -2-  and dashboard and loosen top of dashboard inset in area -a-  .
    G12837051

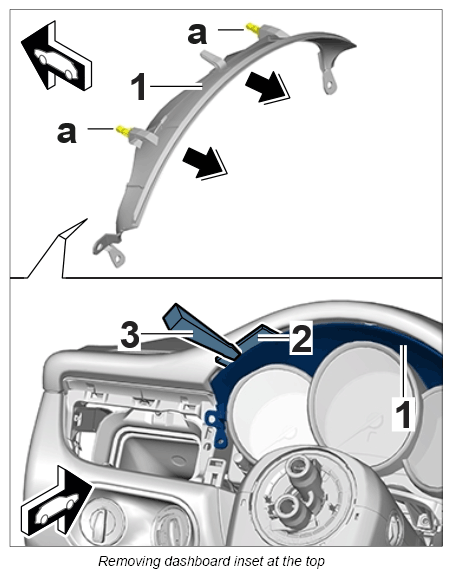

  5. Remove dashboard inset at the top -1-  .
  1. 5.1. Position a plastic squeegee -2-  and plastic wedge -3-  close to the fastening pins -a-  between the top of the dashboard inset and the dashboard.
  2. 5.2. Disengage fastening pins -a-  at the left and right by pulling them horizontally to the rear.
  3. 5.3. Remove dashboard inset at the top.
G12837052
