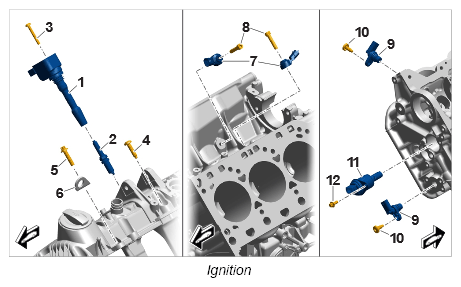

Group 28: Ignition
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Ignition coil, coat with talcum powder before fitting |
| 2 | Spark plug (NEW) → Tightening torque: 30 Nm (22 ft lb.)+1.5 Nm (+1 ft lb.) |
| 2 | Spark plug (re-tightening) → Tightening torque: 25 Nm (19 ft lb.)+1.5 Nm (+1 ft lb.) |
| Electrode gap of spark plug → Control value: 0.7 mm+0.1 mm | |
| 3 | Screw, M6 x 45 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 4 | For tightening torque for screw(s), see WM 158219 REMOVE AND INSTALL THE CYLINDER HEAD COVER . |
| 5 | For tightening torque for screw(s), see WM 158219 REMOVE AND INSTALL THE CYLINDER HEAD COVER |
| 6 | Transport eyebolt |
| 7 | Knock sensor |
| 8 | Screw, M8 x 35 → Tightening torque: 23 Nm (17 ft lb.) |
| 9 | Phase sensor |
| 10 | Aluminum screw, M6 x 16/replace → Initial tightening: 4 Nm (3 ft lb.) → Final tightening: +60° |
| 11 | Hydraulic valve for variable valve control |
| 12 | Screw, BM5 x 12 → Tightening torque: 6 Nm (4.5 ft lb.) |
TORQUE SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Cover on fuse box in plenum panel | Internal Torx screw, | Tightening torque | 3.5 Nm (2.5 ft lb.) |
