Group 27: Starter
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

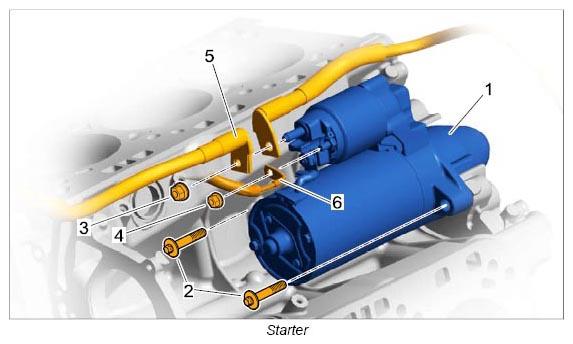

| 1 |
Starter |
| 2 |
Screw → Tightening torque: 45 Nm (33 ft lb.)+8 Nm (+6 ft lb.) |
| 3 |
Nut, M8 → Tightening torque: 18 Nm (13 ft lb.) |
| 4 |
Nut, M6 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 5 |
B+ line |
| 6 |
Terminal 50 line |
