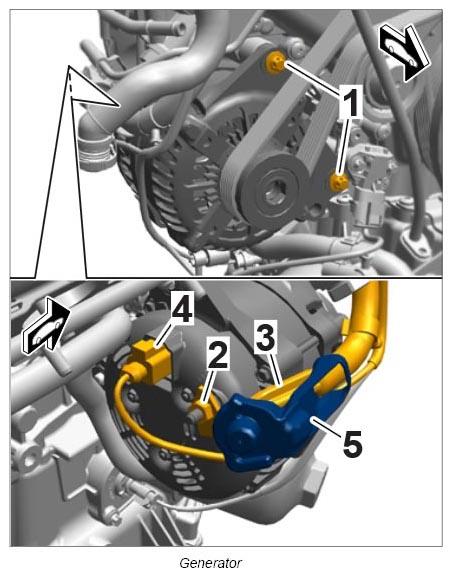

Group 27: Generator
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Screw → Tightening torque: 23 Nm (17 ft lb.) |
| 2 |
Nut → Tightening torque: 23 Nm (17 ft lb.) |
| 3 |
B+ line |
| 4 |
Electric connector for control line |
| 5 |
Cover for B+ line |
