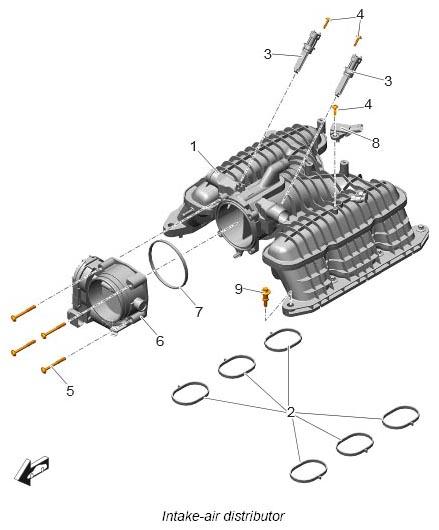

Intake-air distributor
WARNING: This page is about a different car, the 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Intake-air distributor |
| 2 | Seal/replace |
| 3 | Heating element for positive crankcase ventilation |
| 4 | Screw 5.0 x 16.0 → Tightening torque: 3 Nm (2 ft lb.) → Tightening torque: 3 Nm (2 ft lb.) |
| 5 | Throttle valve screws, 6 x 55 → Tightening torque: 6.5 Nm (5 ft lb.)+1 Nm (+0.5 ft lb.) |
| 6 | Throttle valve |
| 7 | Seal/replace if damaged |
| 8 | Sensor for intake manifold pressure (pressure and temperature sensor) |
| 9 | Screw → Tightening torque: 10 Nm (7.5 ft lb.) |
